Vitrifrigo 16000 BTU air conditioning

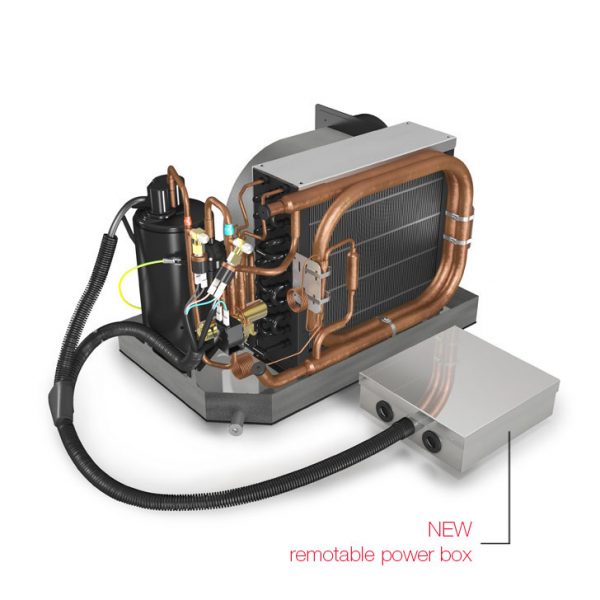

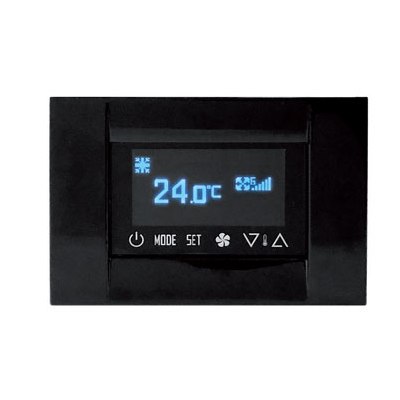

Vitrifrigo self-contained air conditioning unit 16000 btu/h with control panel.
Suitable for cooling single or multiple cabins, the new self-contained system 2020 (compressor, sea water condenser, evaporator and fan) and the new cooling circuit is ideal for all seasons. The compact unit is especially suitable for onboard installations, allowing airflow through insulated ducting and into the conditioned space through air distribution grilles.
- Description
- Reviews (0)
Description
Vitrifrigo self-contained air conditioning unit 16000 btu/h with control panel.
Suitable for cooling single or multiple cabins, the new self-contained system 2020 (compressor, sea water condenser, evaporator and fan) and the new cooling circuit is ideal for all seasons. The compact unit is especially suitable for onboard installations, allowing airflow through insulated ducting and into the conditioned space through air distribution grilles.
Specifications
| Net weight kg. | 31 |
| Power supply | 230V/50Hz |
| Code | 0700-0003 |
| Width mm. | 557 |
| Height mm. | 340 |
| Depth mm. | 349 |
| Air supply diameter mm. | 152 |
| Drain hose diameter mm. | 18 |
| Electrical box dimension mm. | 245 x 188 x 64 |
| Nominal cooling capacity (BTU/h) | 16000 |
| Nominal heating capacity (BTU/h) | 18000 |
| Nominal power consuption (cool mode) (kW) | 1,1 |
| Nominal power consuption (heat mode) (kW) | 1,3 |
| Nominal amperage (cooling mode) (A) | 5 |
| Nominal amperage (heating mode) (A) | 5,5 |
| Air flow (mc/h) | 640 |
| Recommended pump flow (l/h) | 1500 |
Be the first to review “Vitrifrigo 16000 BTU air conditioning”
Related Products
-
Read moreQuick ViewVitrifrigo 7000 BTU air conditioning
Vitrifrigo self-contained air conditioning unit 7000 btu/h with control panel.
Suitable for cooling single or multiple cabins, the new self-contained system 2020 (compressor, sea water condenser, evaporator and fan) and the new cooling circuit is ideal for all seasons. The compact unit is especially suitable for onboard installations, allowing airflow through insulated ducting and into the conditioned space through air distribution grilles.
Read moreQuick View -
Read moreQuick ViewVitrifrigo marine refrigerator DP2600iX (inox) 230lt
Vitrifrigo marine refrigerator DP2600iX 230lt for yachts.
Main features
- New hole system for better air circulation and cooling efficiency
- The new Steelock latch has a vent position for air circulation during periods of non-use.
- High intensity new LED lighting system.
- Dual electronic control 12/24Vdc – 100-240Vac 50/60Hz (optional)
See below more specifications
Read moreQuick View -
Read moreQuick ViewVitrifrigo icemaker timer module
Vitrifrigo icemaker timer module 230V.
Read moreQuick View -
Read moreQuick ViewVitrifrigo Portable refrigerator / freezer VF65P
The new Vitrifrigo portable refrigerator / freezer 12/24/220V VF65P uses the latest Secop (formerly Danfoss) DC compressor. It is power efficient and able to operate with minimal power consumption.
Key features:
– Control Panel
– Detachable Lid
– Internal Led Light
– Dual Power (12/24vdc – 100/240vac)
– Removable basketSpecifications:
– Total volume lt: 65
– Weight: 23 kg
– Power supply: 12/24Vdc – 100-240Vac 50/60Hz
– Nominal consumption: 55W
– Dimensions (cm): 45.5 x 71 x 56
– Internal temperature range: +10°C / -22°CRead moreQuick View -
Read moreQuick ViewVitrifrigo refrigerator / freezer thermostat
P/N R10536 freezer
P/N R10501 refrigerator
Vitrifrigo refrigerator / freezer thermostatRead moreQuick View -
Read moreQuick ViewVitrifrigo marine refrigerator DP2600 230lt
Vitrifrigo marine refrigerator DP2600iX 230lt for yachts.
The new Airlock closure system has been designed to allow an easier access for the end user and integrate different features in order to offer an innovative product, extremely user-friendly.
3 innovative solutions:
Positive door closure, to prevent unwanted openings;
Fast reversible opening: thanks to its smart design, it’s now extremely quick and easy to operate
Integrated “vent position” system, to keep the fridge door ajar, preventing the formation of unpleasant odours and mould when not in use.See below more specifications
Read moreQuick View -
Read moreQuick ViewVitrifrigo Portable refrigerator / freezer VF45P
The new Vitrifrigo portable refrigerator / freezer 12/24/220V VF45P uses the latest Secop (formerly Danfoss) DC compressor. It is power efficient and able to operate with minimal power consumption.
Key features:
– Control Panel
– Detachable Lid
– Internal Led Light
– Dual Power (12/24vdc – 100/240vac)
– Removable basketSpecifications:
– Total volume lt: 45
– Weight: 20,5 kg
– Power supply: 12/24Vdc – 100-240Vac 50/60Hz
– Nominal consumption: 55W
– Dimensions (cm): 41 x 68 x 49
– Internal temperature range: +10°C / -22°CRead moreQuick View -

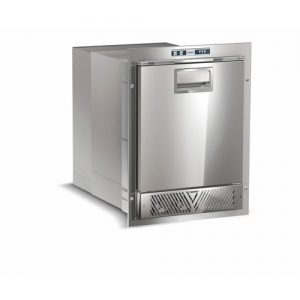

Read moreQuick ViewVitrifrigo Ice maker IM XT OCX2 HYDRO
