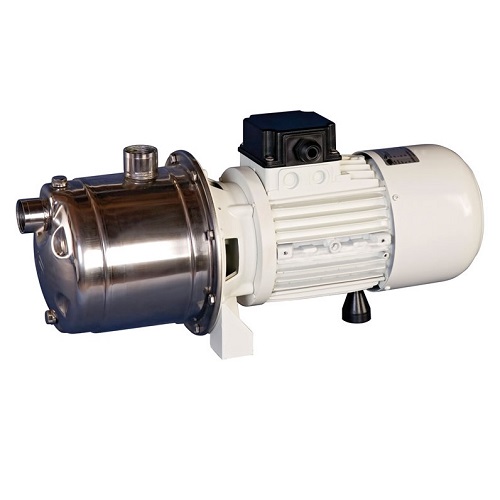

CEM MG-INOX marine self-priming centrifugal pump

MG-INOX

CEM MG-INOX marine self-priming centrifugal pump

Self-priming centrifugal electric pump Jet type with closed impeller, featuring a high suction capacity, widely used to deliver pressurized water to on-board appliances (such as showers, kitchens ,washbasins, toilets, etc.), for air-conditioning units, fire–fighting, washing of decks and chains. MG-INOX pump is suitable for fresh water.



CONSTRUCTION FEATURES

Pump body: AISI 304 STAINLESS STEEL
Shaft : AISI 316 (d.c.) – AISI 420 (a.c.) STAINLESS STEEL
Diffuser and Venturi tube: NORYL (Technopolymer)
Impeller/s: NORYL (Technopolymer).
Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof).

See below models and performances
  • Description
  • Reviews (0)

Description

Self-priming centrifugal electric pumps Jet type with closed impeller, featuring a high suction capacity, widely used to deliver pressurized water to on-board appliances (such as showers, kitchens ,washbasins, toilets, etc.), for air-conditioning units, fire–fighting, washing of decks and chains.
Automatic operation is achieved by equipping the pumps with small or medium-sized surge tanks.

MG-INOX pump is suitable for fresh water.

PERFORMANCES



CONSTRUCTION FEATURES

Pump body: AISI 304 STAINLESS STEEL
Shaft : AISI 316 (d.c.) – AISI 420 (a.c.) STAINLESS STEEL
Diffuser and Venturi tube: NORYL (Technopolymer)
Impeller/s: NORYL (Technopolymer).
Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof).

MOTOR
  • Direct Current:
    Wound field and permanent magnet electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1).
  • Alternate Current:
    Induction electric motor, 230V single-phase (M) / 230-400V three-phase (T), 50Hz, Protection IP44-54, Insulation Class F, Continuous Duty (S1).
SCOPE
  • Liquid free of solid impurities
  • Temperature range of the liquid: from +0 to +50 °C
  • Max. suction depth: 9 m.
  • Static pressure inside the pump body: 6 bar max.
ACCESSORIES ON REQUEST
  • Non-return valve 1” or 1” 1/2
  • “Omega base” made in stainless steel with antivibrations

12V-24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T, 50Hz: three-phase alternate current

Available on request other voltages at 50Hz and 60Hz.
