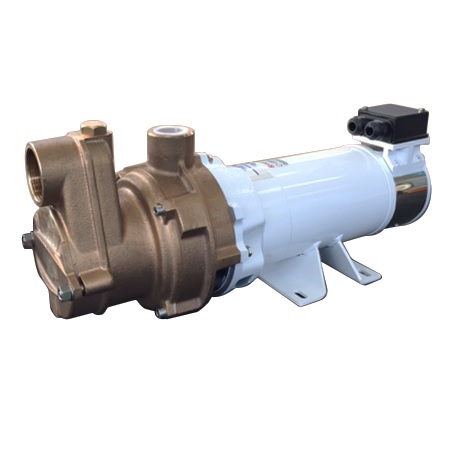

CEM MCA 75 marine self-priming pump
CEM MCA 75 is a bronze self-priming electric pump with liquid side ring, star impeller with integrated grinder – widely used in the nautical sector for sewage water treatment plants and emptying black water waste tanks (even with the presence of small solid organic suspended solids)
CONSTRUCTION FEATURES
- Pump body: BRONZE
- Impeller: BRONZE
- Fixed cutting unit: BRONZE/ALUMINIUM
- Rotating cutting unit: BRONZE/ALUMINIUM
- Shaft: STAINLESS STEEL AISI 316
- Mechanical seal: CERAMICS/GRAPHITE/NBR (special corrosion proof)
See below models and performances
- Description
- Reviews (0)
Description
CEM MCA 75 is a bronze self-priming electric pump with liquid side ring, star impeller with integrated grinder – widely used in the nautical sector for sewage water treatment plants and emptying black water waste tanks (even with the presence of small solid organic suspended solids)
PERFORMANCES
| Modello Type |
Materiale Material |
Voltaggio Voltage (V) |
Potenza Power |
Assorbimento Absorption (A) |
Giri/min. RPM |
Portata Max. Max. delivery (l/min.) |
Prevalenza Max. Max. head (m) |
|
| HP | kW | |||||||
| MCA 75 | Bronzo Bronze |
24V | 1 | 0,75 | 28 | 1400 | 96 | 18 |
| 230M | 1 | 0,75 | 5 | 1400 | 96 | 18 | ||
| 230÷400T | 1 | 0,75 | 2÷3,5 | 1400 | 96 | 18 | ||
CONSTRUCTION FEATURES
- Pump body: BRONZE
- Impeller: BRONZE
- Fixed cutting unit: BRONZE/ALUMINIUM
- Rotating cutting unit: BRONZE/ALUMINIUM
- Shaft: STAINLESS STEEL AISI 316
- Mechanical seal: CERAMICS/GRAPHITE/NBR (special corrosion proof)
MOTOR
- Direct Current:
Permanent magnets electric motor 24V, Protection IP44, Insulation Class F, Continuous Duty (S1). - Alternate Current:
Induction electric motor 230V single-phase (M) / 230-400V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
- Temperature range of the liquid: from +0 to +70 °C
- Max. suction depth: 6 meter
- Static pressure inside the pump body: 6 bar max.
ACCESSORIES ON REQUEST
- Omega base with anti-vibration mounts
12V-24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T, 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
