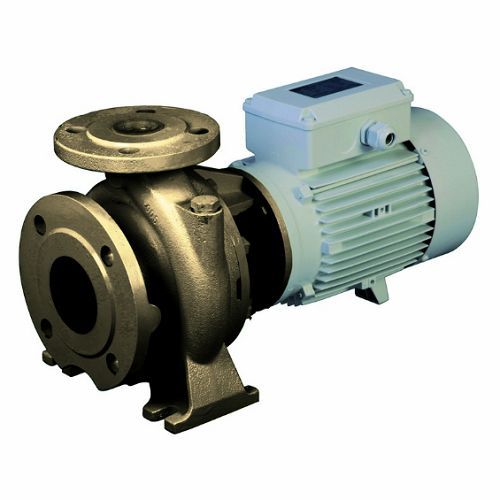

CEM B-CN marine centrifugal pump
Centrifugal electric pumps made in BRONZE widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as: air conditioning, cooling and circulation etc.
CONSTRUCTION FEATURES
- Pump body: BRONZE
- Motor support: BRONZE
- Impeller: BRONZE
- Shaft: AISI 316 Stainless steel
- Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof)
See below models and performances
- Description
- Reviews (0)
Description
Centrifugal electric pumps made in BRONZE widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as: air conditioning, cooling and circulation etc.
PERFORMANCES
|
Model |
Material |
Voltage |
Power |
Absorption |
Giri/min. |
Max. delivery |
Max. head |
|
|
HP |
kW |
|||||||
|
B-CN 32/125 |
Bronzo |
230M |
1,5 |
1,1 |
7,4 |
2800 |
250 |
23 |
|
230÷400T |
1,5 |
1,1 |
4,7÷2,7 |
2800 |
250 |
|
||
|
B-CN 40/125 A |
Bronzo |
230M |
1,5 |
1,1 |
7,4 |
2800 |
550 |
14 |
|
230÷400T |
1,5 |
1,1 |
5÷2,9 |
2800 |
550 |
14 |
||
|
B-CN 40/125 B |
Bronzo |
230÷400T |
3 |
2,2 |
9,2÷5,3 |
2800 |
700 |
22 |
|
B-CN 40/160 |
Bronzo |
400÷690T |
5,5 |
4 |
9,6÷5,5 |
2800 |
800 |
37 |
|
B-CN 50/125 |
Bronzo |
400÷690T |
5,5 |
4 |
9,6÷5,5 |
2800 |
1300 |
24 |
|
B-CN 65/160 |
Bronzo |
400÷690T |
10 |
7,5 |
14,3÷9,2 |
2800 |
2000 |
26 |
|
B-CN 80/160 |
Bronzo |
400÷690T |
20 |
15 |
27,3÷15,8 |
2800 |
3000 |
34 |
CONSTRUCTION FEATURES
- Pump body: BRONZE
- Motor support: BRONZE
- Impeller: BRONZE
- Shaft: AISI 316 Stainless steel
- Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof)
MOTOR
- Direct Current:
Permanent magnet electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1). - Alternate Current:
Induction electric motor, 230V single-phase (M) / 230÷400V / 400÷690V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
- Liquid free of solid impurities
- Temperature range of the liquid: from + 0 to + 90 °C.
- Max. suction depth: 7 m
- Static pressure inside the pump body: 6 bar max.
230M, 50Hz: single-phase alternate current
230÷400T, 400÷690T, 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
