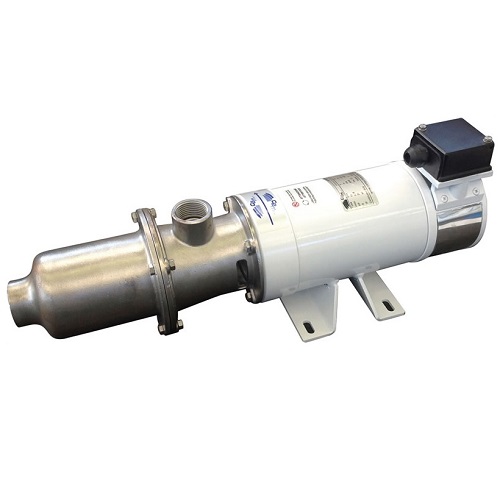

CEM SBX marine single screw self-priming pump
CEM SBX serie is a single screw self-priming pump made in STAINLESS STEEL AISI 316 equipped with a single screw made in stainless steel AISI 316 that running inside in a NBR rubber stator. These pumps are widely used in the nautical sector to emptying waste tank , toilet sewage and particularly viscous liquids with small solid bodies in suspension.
CONSTRUCTION FEATURES
- Pump body: STAINLESS STEEL AISI 316
- Shaft : AISI 316 Stainless Steel
- Rotor: AISI 316 Stainless Steel
- Coupling: AISI 316 Stainless Steel – NBR
- Stator: NBR
- Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof)
See below models and performances
- Description
- Reviews (0)
Description
Single screw self-priming pump made in STAINLESS STEEL AISI 316 equipped with a single screw made in stainless steel AISI 316 that running inside in a NBR rubber stator. These pumps are widely used in the nautical sector to emptying waste tank , toilet sewage and particularly viscous liquids with small solid bodies in suspension.
PERFORMANCES
| Model Type |
Material | Voltage (V) |
Power | Absorption (A) |
Giri/min. RPM |
Max. delivery (l/min.) |
Max. head (m) |
|
| HP | kW | |||||||
| SBX | Inox Aisi 316 S.S. Aisi 316 |
12 | 0,75 | 0,55 | 36 | 1400 | 50 | 50 |
| 24 | 0,75 | 0,55 | 20 | 1400 | 50 | 50 | ||
| 230M | 0,75 | 0,55 | 4 | 1400 | 50 | 50 | ||
| 230÷400T | 0,75 | 0,55 | 3,6÷2 | 1400 | 50 | 50 | ||
| SBX 6 | Inox Aisi 316 S.S. Aisi 316 |
24 | 1,5 | 1,1 | 60 | 1400 | 65 | 55 |
| 230M | 1,5 | 1,1 | 9,6 | 1400 | 65 | 55 | ||
| 230÷400T | 1,5 | 1,1 | 4,7÷2,7 | 1400 | 65 | 55 | ||
| SBX 7 | Inox Aisi 316 S.S. Aisi 316 |
230M | 2 | 1,5 | 9,8 | 1400 | 116 | 40 |
| 230÷400T | 2 | 1,5 | 5÷2,9 | 1400 | 116 | 40 | ||
| SBX 8/A | Inox Aisi 316 S.S. Aisi 316 |
230÷400T | 3 | 2,2 | 9,6÷5,6 | 900 | 185 | 40 |
| SBX 8 | Inox Aisi 316 S.S. Aisi 316 |
230÷400T | 5,5 | 4 | 15÷8,7 | 1400 | 292 | 30 |
CONSTRUCTION FEATURES
- Pump body: STAINLESS STEEL AISI 316
- Shaft : AISI 316 Stainless Steel
- Rotor: AISI 316 Stainless Steel
- Coupling: AISI 316 Stainless Steel – NBR
- Stator: NBR
- Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof)
MOTOR
- Direct Current:
Permanent magnets electric motor 12/24V, Protection IP44, Insulation Class F, Continuous Duty (S1). - Alternate Current:
Induction electric motor, 230V single-phase (M) / 230÷400V three-phase (T), 50Hz, Protection IP44/55, Insulation Class F, Continuous Duty (S1).
SCOPE
- Temperature range of the liquid: from + 0 to +70 °C
- Max. suction depth: 6 m
- Static pressure inside the pump body: 6 bar max
ACCESSORIES ON REQUEST
- Non return valve
- “Omega” base made in stainless steel with antivibrations
12V-24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T, 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
