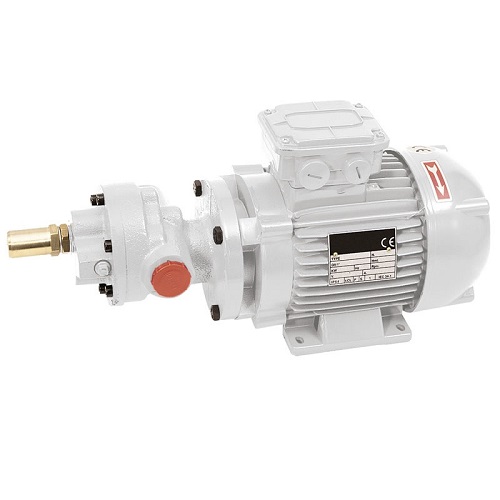

GEARGEAR

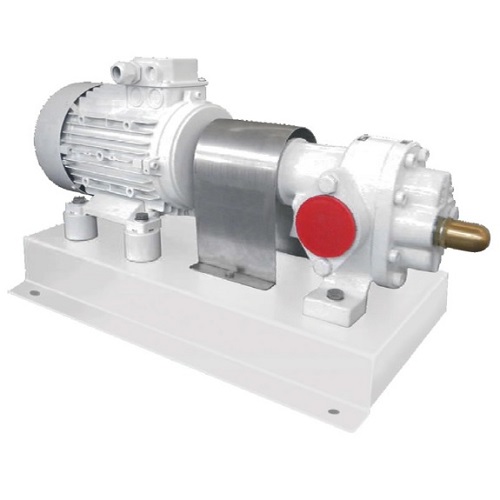

GEAR STGEAR ST

CEM marine self-priming volumetric GEAR pump

CEM GEAR and GEAR ST series include self-priming volumetric gear electric pumps suitable for transferring of viscous liquids without any solid bodies in suspension such as: lubrificant oil, fuel oil and diesel oil.
The Gear ST serie is fixed on a base and coupled to the engine by flexible joint.



CONSTRUCTION FEATURES
  • Pump body: BRONZE
  • Gearings: BRONZE
  • Shaft: STEEL
  • Mechanical seals: made in VITON (special corrosion proof)
See below models and performances
  • Description
  • Reviews (0)

Description

CEM GEAR and GEAR ST series include self-priming volumetric gear electric pumps suitable for transferring of viscous liquids without any solid bodies in suspension such as: lubrificant oil, fuel oil and diesel oil.
The Gear ST serie is fixed on a base and coupled to the engine by flexible joint.

PERFORMANCES

Modello
Type
Material Voltage
(V)
Power Giri/min.
RPM
Head
5 BAR
Head
10 BAR
HP kW Delivery (l / min) Delivery (l / min)
GEAR 5-B Bronzo
Bronze
12 0,35 0,25 1400 5,3 5
24 0,35 0,25 1400 5,3 5
230M 0,35 0,25 1400 5,3 5
230÷400T 0,35 0,25 1400 5,3 5
GEAR 10-B Bronzo
Bronze
12 0,5 0,37 1400 10 9,6
24 0,5 0,37 1400 10 9,6
230M 0,5 0,37 1400 10 9,6
230÷400T 0,5 0,37 1400 10 9,6
GEAR 15-B Bronzo
Bronze
24 0,75 0,55 1400 15 14,2
230M 0,75 0,55 1400 15 14,2
230÷400T 0,75 0,55 1400 15 14,2
GEAR 25-B Bronzo
Bronze
24 0,75 0,55 1400 25 23,3
230M 1 0,75 1400 25 23,3
230÷400T 1 0,75 1400 25 23,3
GEAR 35-B Bronzo
Bronze
24 1 0,75 1400 35 33,3
230M 1,5 1,1 1400 35 33,3
230÷400T 1,5 1,1 1400 35 33,3
GEAR 50-B Bronzo
Bronze
230M 2 1,5 1400 50 48,3
230÷400T 2 1,5 1400 50 48,3
GEAR 60-B Bronzo
Bronze
230M 2,5 1,85 1400 60 56,5
230÷400T 2,5 1,85 1400 60 56,5
    GEAR 70-B Bronzo
Bronze
230÷400T 2,5 1,8 1400 70
GEAR ST 100-B Bronzo
Bronze
230M 3 2,2 1400 115 50
230÷400T 3 2,2 1400 115 50
230÷400T 4 3 1400 105 100
GEAR ST 150-B Bronzo
Bronze
230÷400T 4 3 1400 164 50
230÷400T 5,5 4 1400 156 100
GEAR ST 200-B Bronzo
Bronze
230÷400T 5,5 4 1400 212 50
230÷400T 7,5 5,5 1400 205 100
GEAR ST 250-B Bronzo
Bronze
230÷400T 5,5 4 1400 258 50
230÷400T 10 7,5 1400 250 100
GEAR ST 300-B Bronzo
Bronze
230÷400T 7,5 5,5 1400 314 50
230÷400T 10 7,5 1400 302 100
GEAR ST 350-B Bronzo
Bronze
230÷400T 7,5 5,5 1400 365 50
230÷400T 15 11 1400 350 100
GEAR ST 400-B Bronzo
Bronze
230÷400T 10 7,5 1400 415 50
230÷400T 15 11 1400 405 100
GEAR ST 500-B Bronzo
Bronze
230÷400T 15 11 1400 515 50
230÷400T 20 15 1400 505 100
GEAR ST 600-B Bronzo
Bronze
230÷400T 15 11 1400 620 50
230÷400T 20 15 1400 600 100
CONSTRUCTION FEATURES
  • Pump body: BRONZE
  • Gearings: BRONZE
  • Shaft: STEEL
  • Mechanical seals: made in VITON (special corrosion proof)
MOTOR
  • Direct Current:
    Permanent magnets electric motor 12/24V, Protection IP44, Insulation Class F, Continuous Duty (S1).
  • Alternate Current:
    Induction electric motor, 230V single-phase (M) / 230÷400T, 400÷690T three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
  • Liquid free of solid impurities
  • Temperature range of the liquid: from +0 to +120°C
  • Viscosity of the liquid: 10°E max.
ACCESSORIES ON REQUEST
  • By pass safety valve to install in the outlet to protect the pump from dangerous over pressures. The valve can be calibrated by acting on the adjusting screw.
  • 6 poles motor suitable for liquids with viscosity from 10°E to 50°E.
  • Mechanical seal for high temperature (max. 200 °C) made in WIDIA – VITON.

24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T, 400÷690T, 50Hz: three-phase alternate current

Available on request other voltages at 50Hz and 60Hz.
Note: Performances with oil 6°E (Tolerance +2% – 5%)
