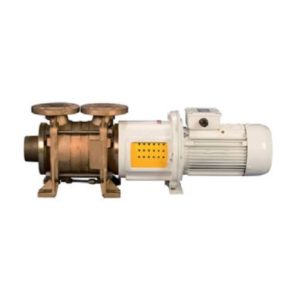

CEM ABR marine multi-stage self-priming pumps
Multi-stage self-priming electric pumps made of bronze fitted with radial impellers. These electric pumps are widely used in the nautical sector to empty bilges, fire-fighting washing of chains and for the transfer of oil. Installing a filter and non-return valve at the suction inlet recommended.
CONSTRUCTION FEATURES
- Pump body: BRONZE.
- Impellers: BRONZE.
- Pump cases and diffusers: BRONZE.
- Shaft: STAINLESS STEEL AISI 316.
- Mechanical seal: Ceramics-Graphite (special corrosion-proof).
See below models and performances
- Description
- Reviews (0)
Description
Multi-stage self-priming electric pumps made of bronze fitted with radial impellers. These electric pumps are widely used in the nautical sector to empty bilges, fire-fighting washing of chains and for the transfer of oil. Installing a filter and non-return valve at the suction inlet recommended.
PERFORMANCES
| Modello Type |
Material | Voltage (V) |
Potenza Power |
Absorption (A) |
Giri/min. RPM |
Max. delivery (l/min.) |
Max. head (m) |
|
| HP | kW | |||||||
| ABR 32/1 | Bronzo Bronze |
24 | 1,5 | 1,1 | 52 | 1400 | 150 | 25 |
| 230M | 1,5 | 1,1 | 9,6 | 1400 | 150 | 25 | ||
| 230÷400T | 1,5 | 1,1 | 4,8÷2,7 | 1400 | 150 | 25 | ||
| ABR 32/2 | Bronzo Bronze |
24 | 2 | 1,5 | 90 | 1400 | 150 | 50 |
| 230M | 2,5 | 1,8 | 12 | 1400 | 150 | 50 | ||
| 230÷400T | 2,5 | 1,8 | 7,7÷4,4 | 1400 | 150 | 50 | ||
| ABR 32/3 | Bronzo Bronze |
230M | 4 | 3 | 18,6 | 1400 | 150 | 78 |
| 230÷400T | 4 | 3 | 11,2÷6,4 | 1400 | 150 | 78 | ||
| ABR 40/1 | Bronzo Bronze |
24 | 2 | 1,5 | 90 | 1400 | 220 | 35 |
| 230M | 3 | 2,2 | 14 | 1400 | 220 | 38 | ||
| 230÷400T | 3 | 2,2 | 9÷5,2 | 1400 | 220 | 38 | ||
| ABR 40/2 | Bronzo Bronze |
230÷400T | 5,5 | 4 | 15 ÷8,7 | 1400 | 220 | 72 |
| ABR 50/1 | Bronzo Bronze |
230÷400T | 5,5 | 4 | 15 ÷8,7 | 1400 | 400 | 41 |
| ABR 50/2 | Bronzo Bronze |
400÷690T | 12,5 | 9,2 | 18,2÷10,2 | 1400 | 400 | 82 |
| ABR 65/1 | Bronzo Bronze |
400÷690T | 10 | 7,5 | 15,3÷8,9 | 1400 | 600 | 43 |
| ABR 65/2 | Bronzo Bronze |
400÷690T | 20 | 15 | 29÷16 | 1400 | 600 | 85 |
| ABR 65/3 | Bronzo Bronze |
400÷690T | 30 | 22 | 40÷23 | 1400 | 600 | 130 |
CONSTRUCTION FEATURES
- Pump body: BRONZE.
- Impellers: BRONZE.
- Pump cases and diffusers: BRONZE.
- Shaft: STAINLESS STEEL AISI 316.
- Mechanical seal: Ceramics-Graphite (special corrosion-proof).
MOTOR
- Direct Current:
Wound field electric motor 24V, protection IP23, insulation class F, countinuous duty (S1). - Alternate Current:
Induction electric motor 230V single-phase (M) 230÷400V / 400÷690V three-phase (T), protection IP55, insulation class F, countinuous duty (S1).
SCOPE
- Liquid free of solid impurities.
- Temperature range of the liquid: from +0 to +90 °C.
- Max. suction depth: 9 m.
- Static pressure inside the pump body: 20 bar max.
ACCESSORIES ON REQUEST
- Counter flanges in Stainless Steel AISI 316 (DN 32, DN 40, DN 50, DN 65).
24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T / 400÷690T, 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
